Reliable Softgel Production for Pharmaceutical and Nutraceutical Manufacturers

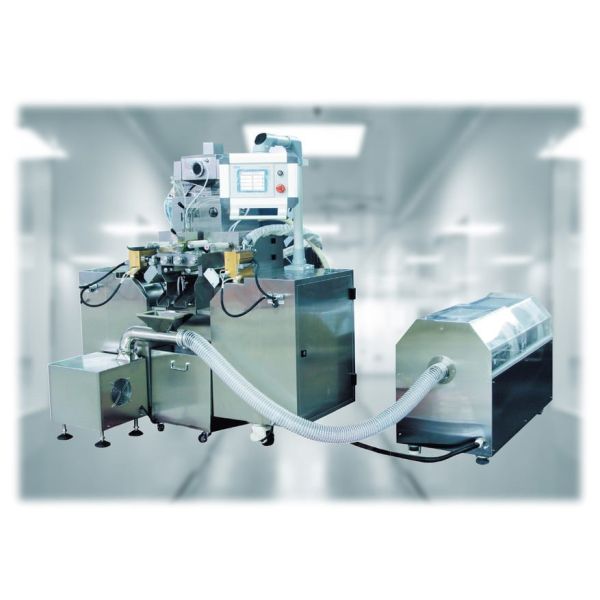

Running a softgel production line can be challenging—capsule weight consistency, gelatin supply stability, and downtime often cause headaches. The JL250-II industrial softgel encapsulation machine was designed to tackle these issues. With its gear-driven system, high-precision 20-plunger filling pumps, and PLC touchscreen control, it delivers reliable, continuous operation while ensuring every capsule meets quality standards.
Whether your focus is vitamins, fish oil, or herbal extracts, the JL250-II keeps production smooth and predictable.
Built for Efficiency and Accuracy
From the start, the JL250-II was engineered for high-volume production without sacrificing quality. It can produce up to 120,960 capsules per hour for Size 8 oval softgels, and 58,800 per hour for Size 20 oblongs. The 20-plunger filling system guarantees ±0.5% accuracy, helping you reduce waste and maintain uniform dosage across every batch.

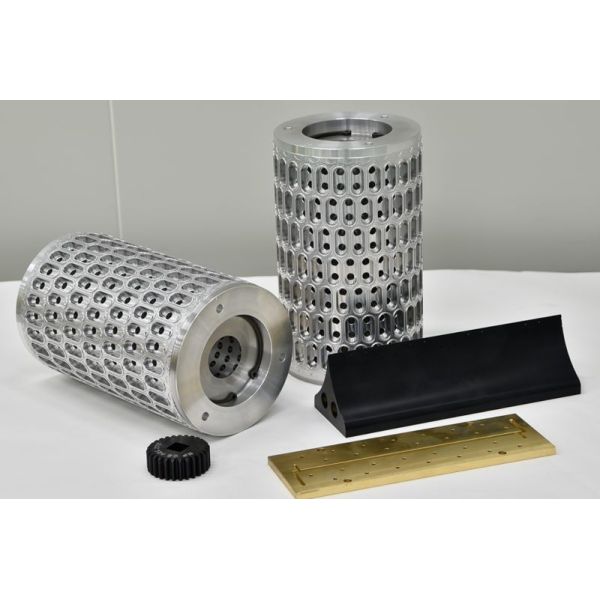

The gear-driven transmission reduces vibration, extends equipment life, and keeps operations stable, even during long production runs. Mold rollers are precision-machined to ensure consistent capsule shape and fewer defects.
User-Friendly Operation

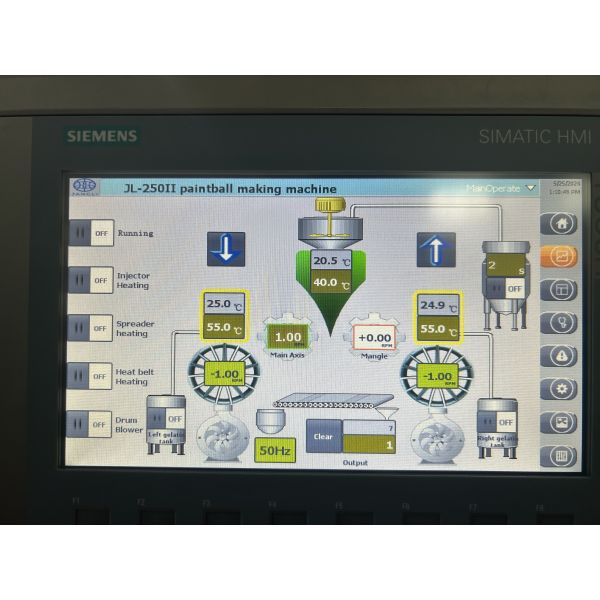

We designed the JL250-II with operators in mind. The PLC touchscreen interface makes it easy to monitor production, adjust mold speed, and control filling volume—all without complex training.

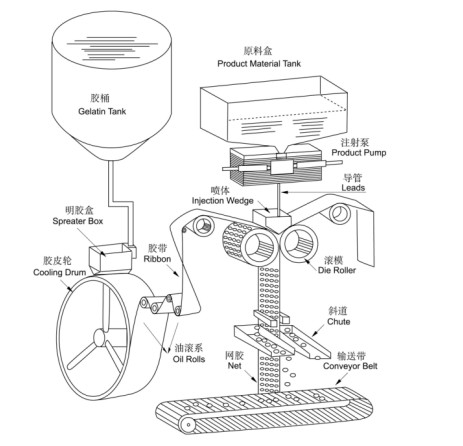

Meanwhile, the closed-loop gelatin supply system keeps gelatin at the right temperature and viscosity, ensuring continuous, hygienic feeding.
Applications That Fit Your Needs
The JL250-II handles a wide variety of formulations, from oils and suspensions to semi-liquid blends.
Typical applications include:
- Pharmaceutical softgels
- Fish oil capsules
- Vitamin softgels
- Herbal extract capsules

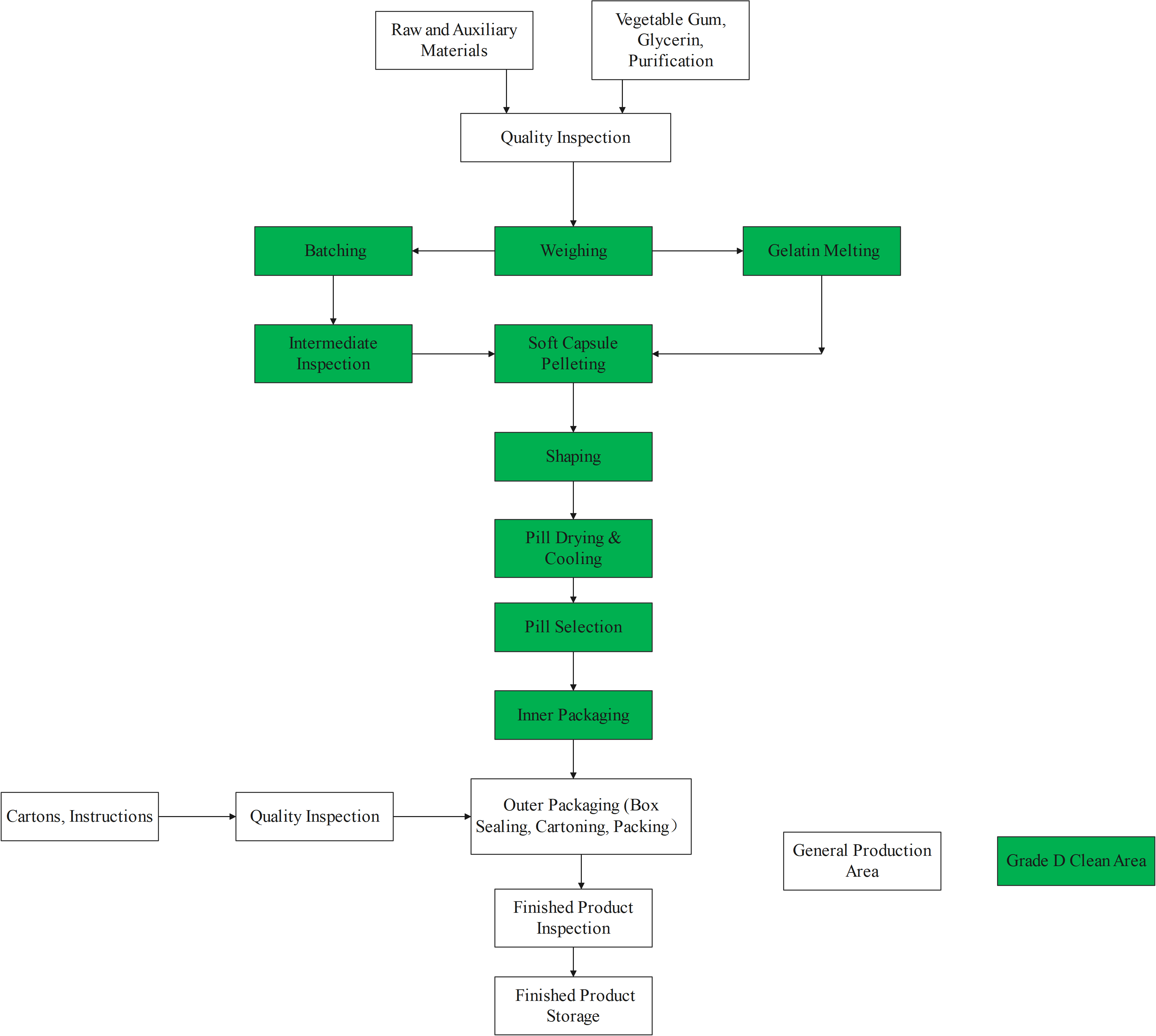

Integration Into Your Production Line
This setup ensures a smooth, continuous production workflow.
Upstream equipment may include:
- Gel melting tanks
- Gelatin homogenizers
Downstream equipment may include:
- Tumble dryers
- Drying tunnels
- Capsule sorting machines
- Counting and bottling systems
Technical Overview
Production Capacity: 120,960 capsules/hour
Mold Roller: Φ150 × 250 mm
Mold Speed: 0–5 RPM
Filling Volume: 0–2 ml
Plungers: 20
Filling Accuracy: ±0.5%
Power Consumption: 12 kW
Equipment Weight: 1400 kg
Dimensions: 2040 × 960 × 1900 mm
Compliance and Validation
The JL250-II meets GMP and FDA standards. Full validation support is available, including DQ, IQ, OQ, and PQ documentation.
Frequently Asked Questions
What types of capsules can it produce?
Pharmaceutical softgels, fish oil, vitamins, and herbal extract capsules.
How accurate is the filling system?
±0.5%—ensuring consistent dosage across every capsule.
What is the production capacity?
Up to 120,960 capsules per hour (Size 8 oval).
Can it integrate into a full production line?
Yes. It connects with gelatin preparation systems, dryers, sorting, and bottling equipment for fully automated production.
